Description

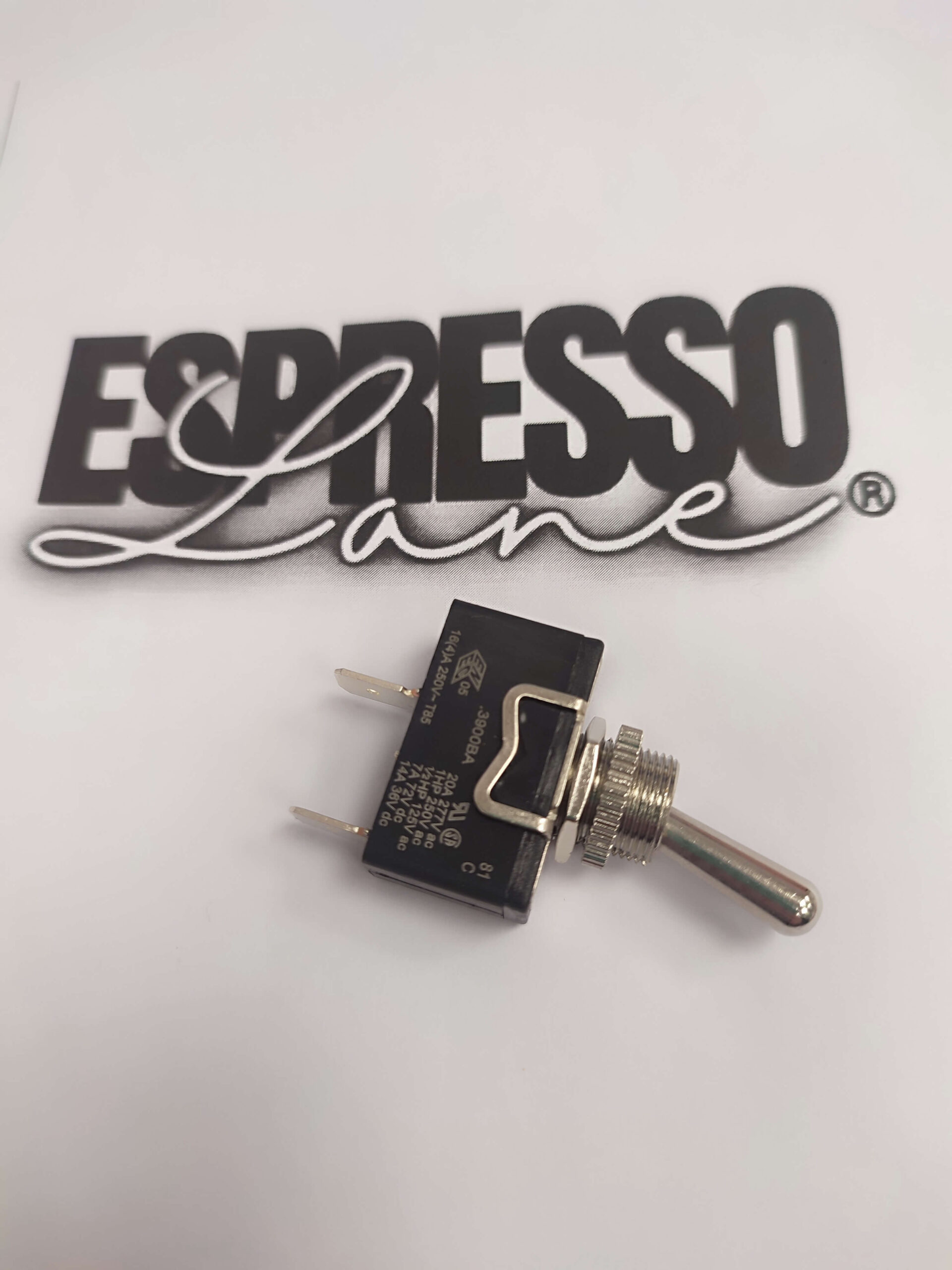

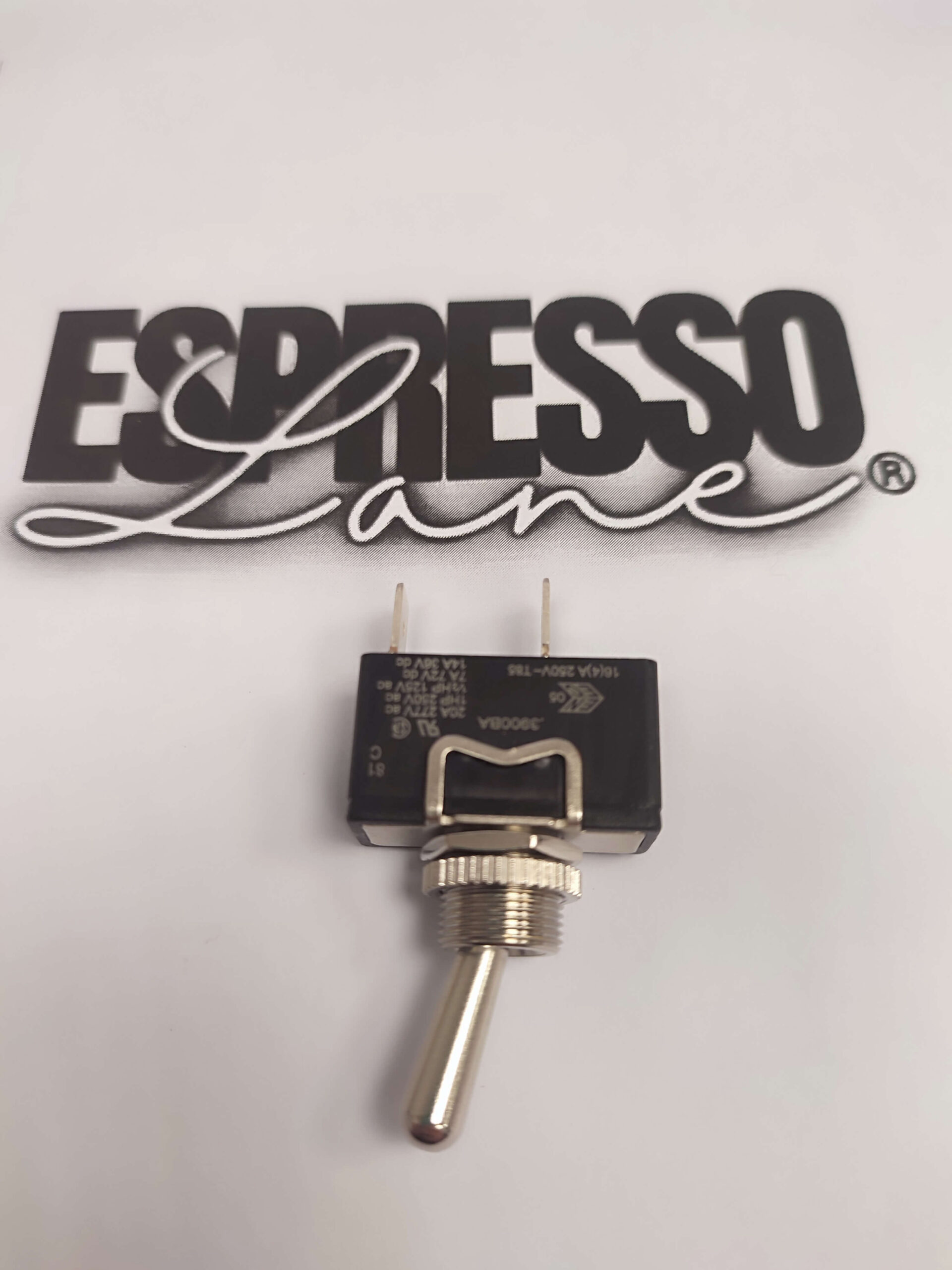

This toggle switch offer a wide variety of switching options in single and double pole versions with SPST, SPDT, DPST & DPDT switching and momentary and three position actions.
Nickel plated brass lever, with nickel plated nut and bush, fit industry standard 12.7mm diameter mounting holes and provide secure, durable operation.
These switches find many applications where conventional lever operation is needed including; control panels, automation systems, test equipment, industrial equipment and even agricultural, marine and motoring accessories.
Nickel plated brass lever, with nickel plated nut and bush, fit industry standard 12.7mm diameter mounting holes and provide secure, durable operation.
These switches find many applications where conventional lever operation is needed including; control panels, automation systems, test equipment, industrial equipment and even agricultural, marine and motoring accessories.
Mechanical life: 50000 operations
Full international approvals up to 16(4)A @ 250Vac, T85 (ENEC) and 20A @ 125/277Vdc (UL & CSA).
Full international approvals up to 16(4)A @ 250Vac, T85 (ENEC) and 20A @ 125/277Vdc (UL & CSA).
Specifications:
| Contact Configuration | SPST |
| Switch Operation | On-Off |
| Contact Current Rating | 16 A @ 250 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Tab |
| IP Rating | IP67 |
| Panel Cut Out Diameter | 12.7mm |
| Actuator Length | 17.5mm |
| Actuator Material | Metal |
| Panel Cut Out Size | 12.7mm |
